Toscotec OPTIMA Line
OPTIMA rewinders: the best technology to preserve softness and quality.

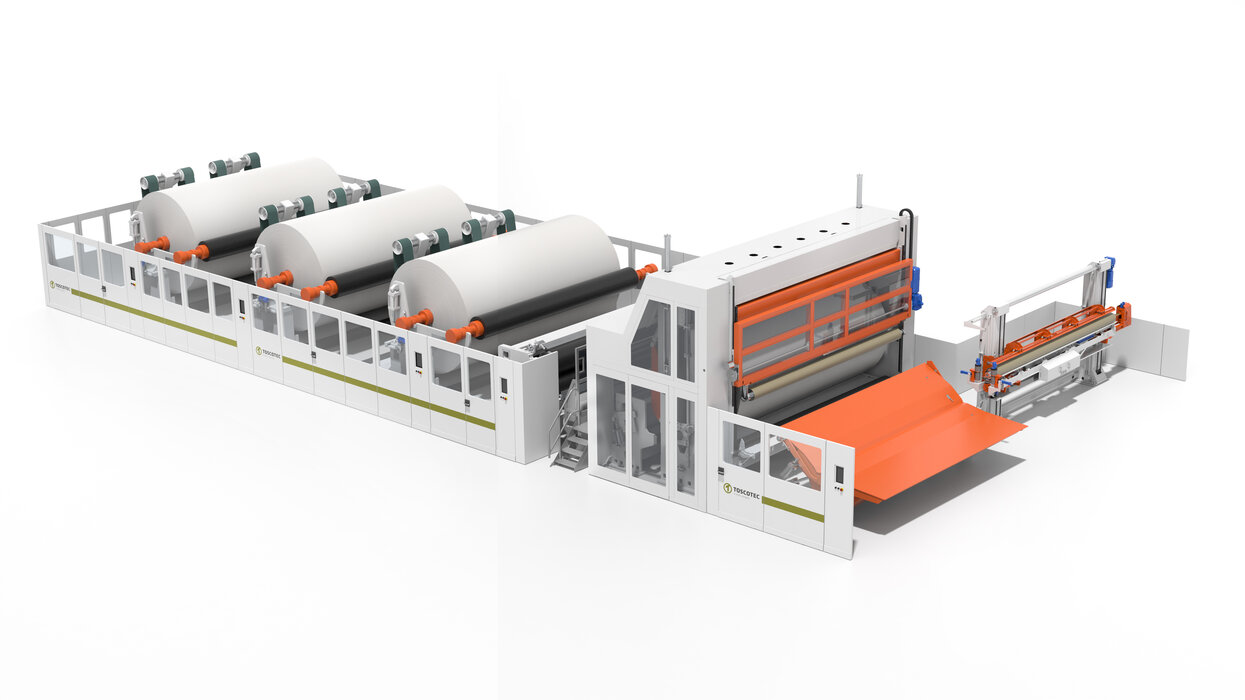

Toscotec OPTIMA line is made of high-performance rewinders that represent the perfect match for Toscotec AHEAD high-speed tissue machines.
OPTIMA rewinders are fitted with a dedicated control system of all winding operations, which, in connection with a customized software, is able to adjust the NIP control automatically. The sensors installed on the machine send continuous feedback to the control system, which makes sure that the actual NIP of the wound reel is detected and adjusted in real time. As a result, the NIP control preserves the softness and the bulk of the parent rolls and guarantees optimal reel uniformity.
OPTIMA rewinders install up to four unwinding stands equipped with a compensation system for out-of-round parent rolls and CWA (Center Wind Assist) control. They can also install a calender fitted with skew or crown control, slitting groups with independent and motorized counter knives, an automatic shaft puller and core loading system.
|OPTIMA SHAFTLESS||OPTIMA 1800||OPTIMA 2200||OPTIMA 2600|
|Basis weight||12:40 gsm||12:40 gsm||12:40 gsm||12:40 gsm|
|Speed up to||1,100 mpm||1,300 mpm||1,800 mpm||1,800 mpm|
|Finished reel||2,000 mm||1,800 mm||2,200 mm||2,600 mm|
|Trim width||up to 5,600||up to 3,600 mm||up to 3,600 mm||up to 5,600 mm|
|Carrying drum diameter||500 - 600 - 750 mm||500 mm||600 mm||750 (900 optional) mm|
|Shaft handling||Manual||Automatic (external)||Automatic (external)|
|Features||Hydraulic, tail threading||Pneumatic|
Tail threading (rewinder)
|Hydraulic, tail threading|
Tail threading from unwind stands
|Hydraulic, tail threading|
Tail threading from unwind stands
