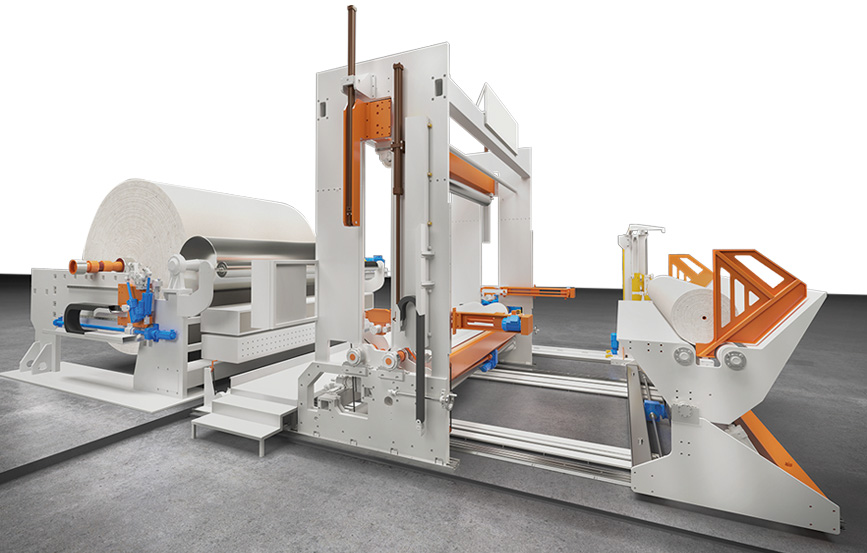

OPTIMA Rewinders NW

The Tension control together with the NIP control system, developed by Toscotec, makes perform the rewinder to maintain the product characteristics and an high operations efficiency. The machine performances are extremely high with the aims to keep always the web characteristics.

Unwinder drum type
Hydraulic relieving system for chucks and rider roll
Nip control by load cells positioned on chucks and rider rolls
Curves set in control system, changeable by the operator or automatic mode
Tension control by load cell positioned on the exit of the unwinder
Manual or automatic slitting positioning
Shaft handling for finished reels

Model	Nip Control	Actuation type	Speed up to	Finished Reel	Trim Width	Winding drum	Roll changing
OPTIMA Rewinder NW 1600	Yes	Hydraulic	1,400 mpm	1,600 mm	Up to 3,600 mm	500 mm	Automatic
OPTIMA Rewinder NW 2200	Yes	Hydraulic	1,800 mpm	2,200 mm	Up to 6,000 mm	750 mm	Automatic

Machine Control

Optima rewinder is designed for:

Limited time for finished roll changing
Automatic shaft handling
Limited manual operation
Machine safety designed/approach
Machine friendly operator

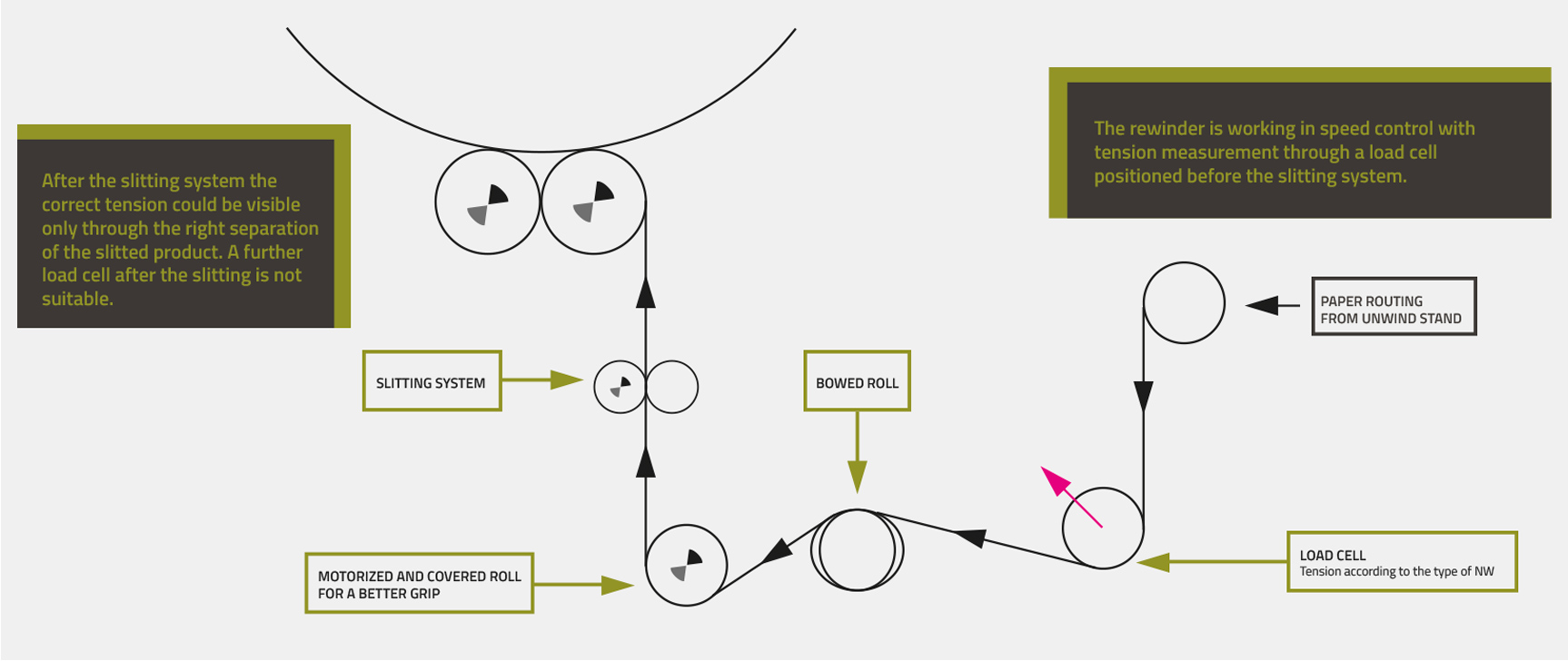

Tension Control for rewinders

OPTIMA’s improved Tension Control System avoidselongation of the nonwovens passing through the web routing. The system checks the roll phase by time unit. It allows a perfect speed control also during machine acceleration and deceleration.

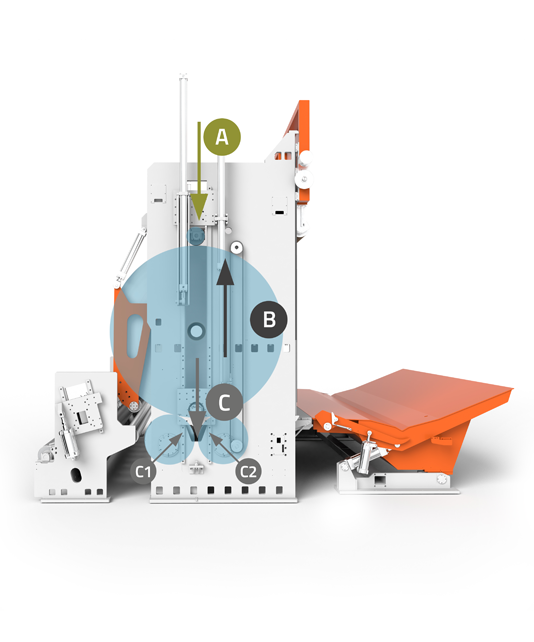

NIP Control for rewinders

OPTIMA Closed Loop Hydraulic System

The sensors installed on the machine send continuous feedback to the control system, which makes sure that the NIP of the wound reel is detected and adjusted in real time.

The reel growing follows the parameters of the signals coming from the sensors. In case that the NIP set is not correct according the paper characteristics, the NIP increases or decreases dramatically.

OPTIMA automatically corrects the values, without operator intervention, restoring the control balance.

The control works on thickness preservation and on the finished reel density.
