TADVISION® Air System

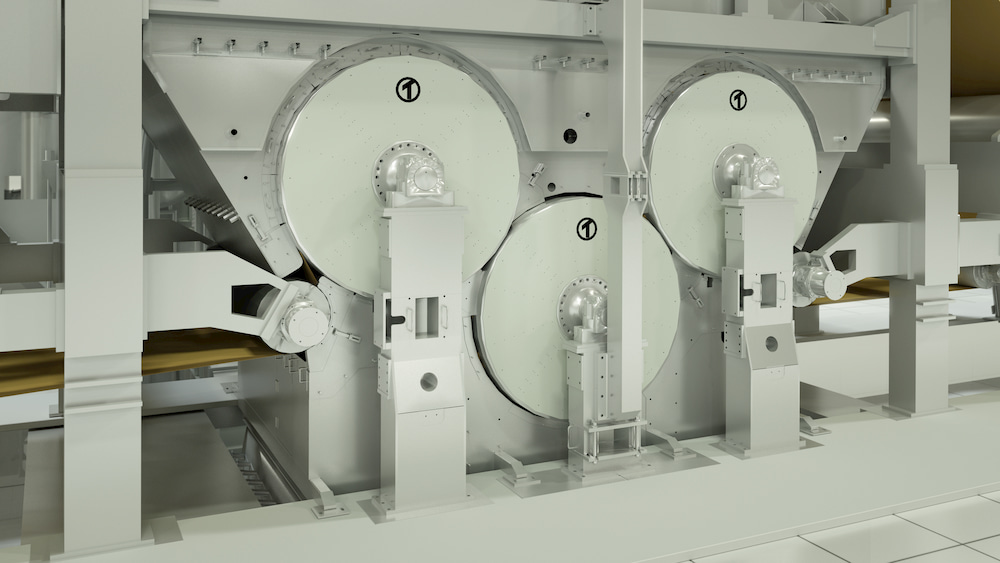

Toscotec’s TADVISION® Air System is composed of two hoods, a lower blowing hood and an upper suction hood, installed below and above the TAD Drum section of the TADVISION® machine. The system is completely customized based on the specific production requirements of the customers.
Thanks to a detailed CFD (Computational Fluid Dynamics) analysis and Toscotec’s Static Mixer technology, the airflow in the ducts is optimized and the temperature and air speed profiles at the entrance of the TAD section are highly uniform across the sheet width. This proves the efficiency of TADVISION® Air System.
The high flexibility of this system is guaranteed by Toscotec’s patented-technology of cross direction moisture profile control system. By using dampers installed inside the upper hood, operators can easily adjust the level of air extraction, in order to ensure maximum profile uniformity.
Toscotec ensures the energy efficiency of its TADVISION® Air System through a unique design. The upper hood covers the entire TAD section (from 3 up to 7 TAD drums), instead of covering single drums with separate hoods. This eliminates the problem of the sheet and fabric losing heat in the transfer from one single hood to the next and consuming additional thermal energy to re-heat them to their previous temperature. Toscotec’s design maintains the temperature inside one single upper hood, thereby saving a considerable amount of energy. TADVISION® Air System can be designed to operate using steam as the only energy source, without gas.
